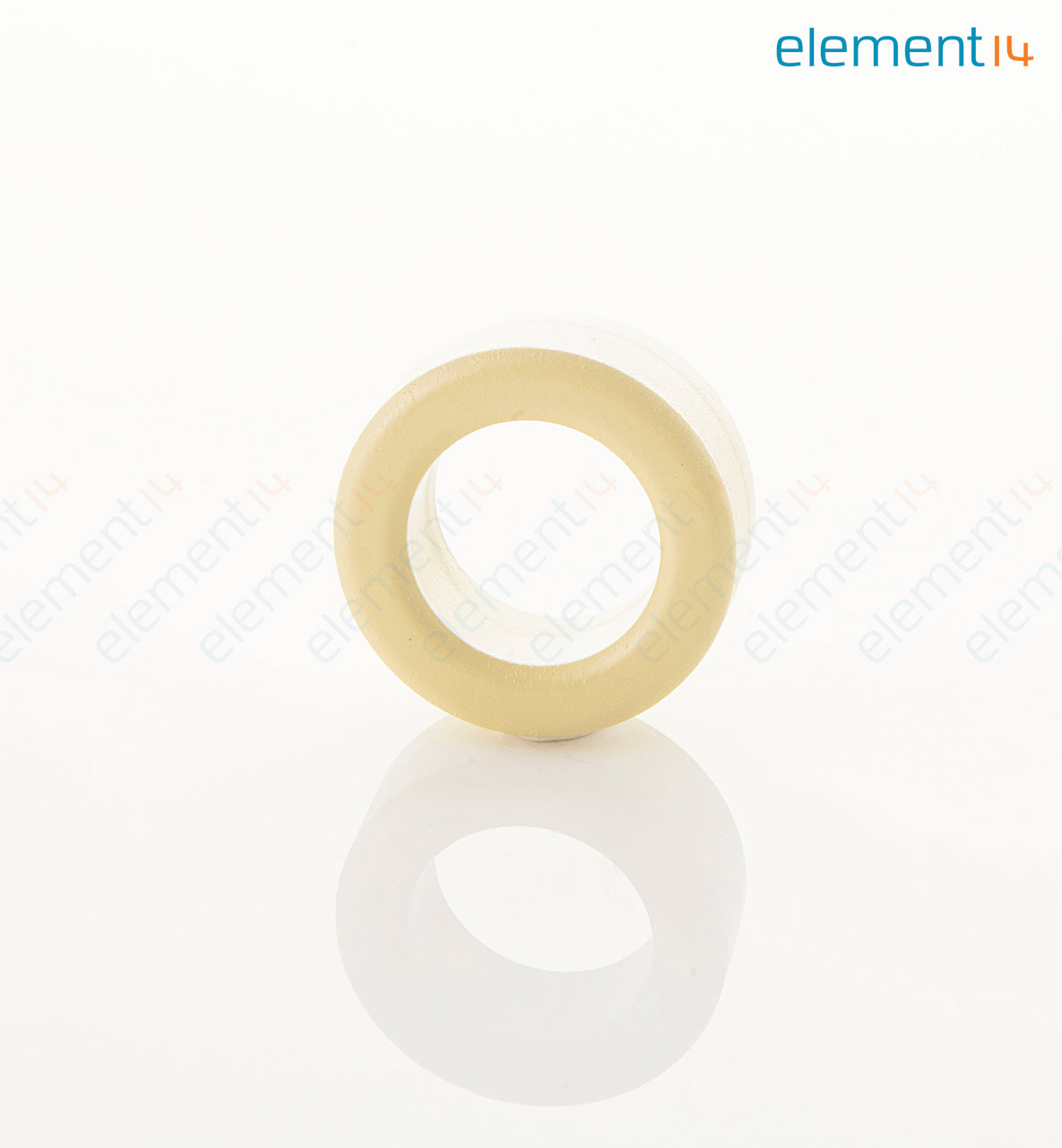

TX36/23/15-3E5
Transformer Cores, Toroid, Toroid, 3E5, 89.7 mm, 97.5 mm²
- Manufacturer:
- FERROXCUBE FERROXCUBE
- Manufacturer Part No:
- TX36/23/15-3E5
- Order Code:
- 3057010
- Technical Datasheet:
- TX36/23/15-3E5 Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Toroid
- :
- -
- :
- -
- :
- 3E5
- :
- 89.7mm
- :
- 97.5mm²
- :
- 11.4µH
- :
- -
Technical Documents (3)
Product Overview
The Ferrite Toroids from Ferroxcube are ring shape cores. This toroid is the optimal shape for magnetic induction, due to its perfectly closed magnetic circuit and homogenous cross section achieves highest inductance per turn (AL factor). The core shape is specially suitable for common mode chokes, transformers, baluns and other applications where high inductance is required. Coating on the core provides breakdown voltage protection depending on core size and ferrite material.
- Available in range of sizes from 2.5mm to 152mm
- Smooth and soft chamfered edges optimal for winding without damaging the wire isolation
- Epoxy, nylon or parylene C, lacquer coating
- Energy storage performance can be optimized by gapping the core
Applications
Industrial
No Longer Manufactured
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
- 5+
- 10+
- 25+
- 50+
- 140+
- 700+
| Quantity | Price (ex VAT) (inc VAT) | Your Price (ex VAT) |
|---|---|---|
| 1+ | £3.24 £3.888 | |
| 5+ | £2.34 £2.808 | |
| 10+ | £2.05 £2.46 | |
| 25+ | £1.71 £2.052 | |
| 50+ | £1.58 £1.896 | |
| 140+ | £1.41 £1.692 | |
| 700+ | £1.35 £1.62 | |
