2334570-8
Rectangular Power Connector, 5LP+25S+2P, 32 Contacts, MULTI-BEAM PLUS, PCB Mount, Through Hole

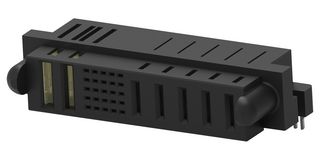

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part No2334570-8
Order Code3289605
Product RangeMULTI-BEAM PLUS
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No2334570-8
Order Code3289605
Product RangeMULTI-BEAM PLUS
Technical Datasheet
No. of Contacts32Contacts
Product RangeMULTI-BEAM PLUS
Connector MountingPCB Mount
Contact Termination TypeThrough Hole
Pitch Spacing2mm
Contact GenderSocket
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Shell Size-
No. of Rows5Rows
SVHCTo Be Advised
Product Overview
- Rectangular power connector
- Horizontal PCB mount orientation
- 7 number of power position, 25 number of signal positions
- 5 number of rows, 60VAC/VDC operating voltage
- Gold contact mating area plating material
- 100A maximum contact current rating
- Tin PCB contact termination area plating material, black hosing colour
- LCP GF30 (liquid crystal polymer) hosing material, blade, pin contact type
- 0.078inch row-to-row spacing, UL 94V-0 UL flammability rating
- Operating temperature range from -40 to 125°C
Technical Specifications
No. of Contacts
32Contacts
Connector Mounting
PCB Mount
Pitch Spacing
2mm
Contact Gender
Socket
Contact Plating
Gold Plated Contacts
No. of Rows
5Rows
Product Range
MULTI-BEAM PLUS
Contact Termination Type
Through Hole
Gender
Receptacle
Contact Material
Copper Alloy
Connector Shell Size
-
SVHC
To Be Advised
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.02395
