GD75FFX65C5S
IGBT Module, Three Phase Full Bridge, 103 A, 1.45 V, 267 W, 150 °C, Module

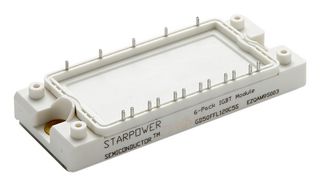

Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerSTARPOWER
Manufacturer Part NoGD75FFX65C5S
Order Code3549272
Technical Datasheet
IGBT ConfigurationThree Phase Full Bridge
Continuous Collector Current103A
DC Collector Current103A
Collector Emitter Saturation Voltage Vce(on)1.45V
Collector Emitter Saturation Voltage1.45V
Power Dissipation267W
Power Dissipation Pd267W
Junction Temperature Tj Max150°C
Operating Temperature Max150°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max650V
Collector Emitter Voltage V(br)ceo650V
IGBT TechnologyTrench Field Stop
Transistor MountingPanel
Product Range-
SVHCTo Be Advised
