1503 09

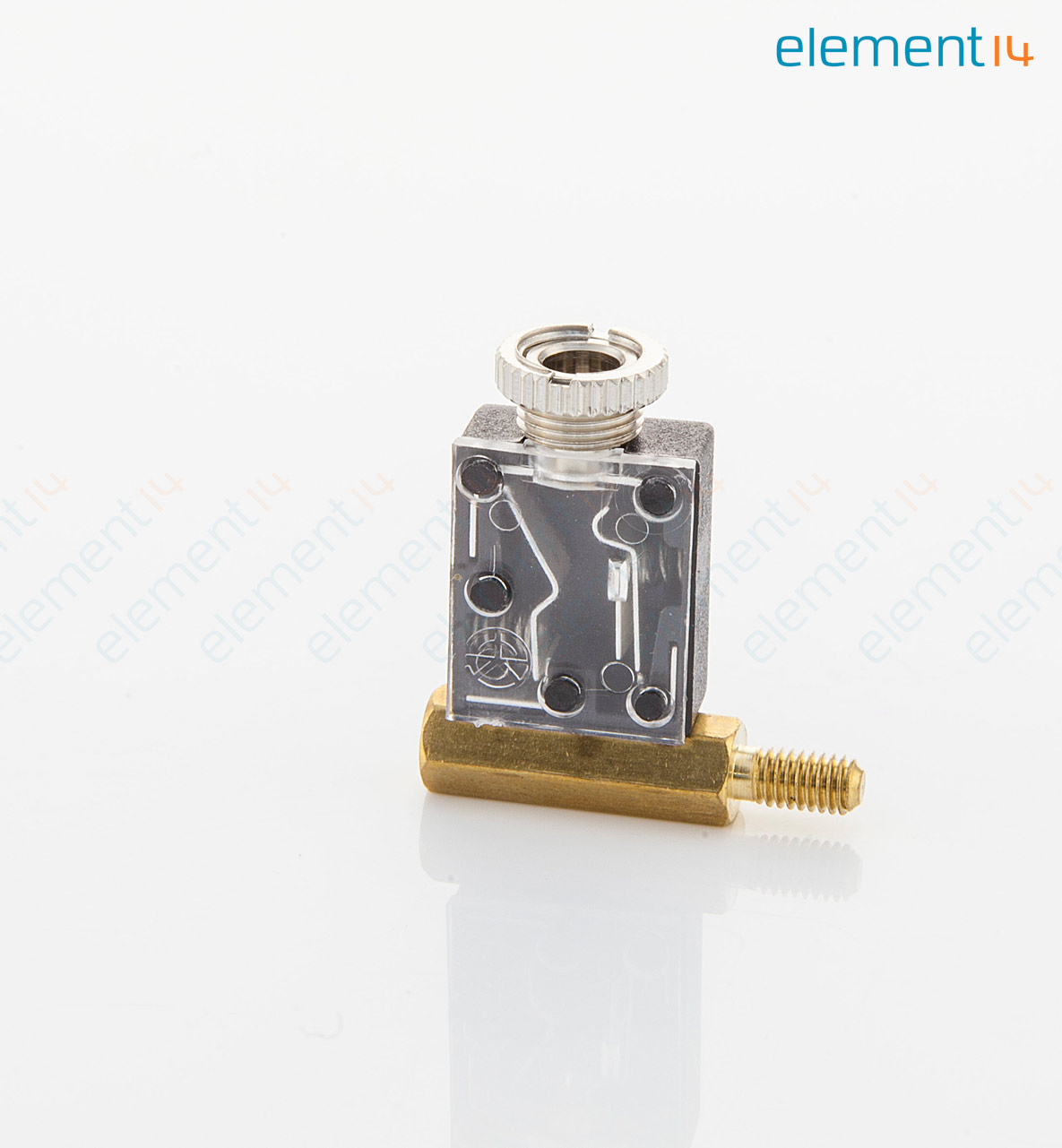

Phone Audio Connector, 3 Contacts, Jack, 3.5 mm, PCB Mount, Silver Plated Contacts, Plastic Body

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
LUMBERG LUMBERG
Manufacturer Part No:
1503 09
Order Code:
1243244
Technical Datasheet:
1503 09   Datasheet
See all Technical Docs

Product Overview

The 1503 09 from Lumberg is a 3.5mm, 3pole stereo jack socket connector. The angular version jack chassis socket are according to JIS C 6560 JC35J3B standard with 2 break contact, solder terminals for printed circuit boards and back side mounting.
  • Rated current of 1A
  • Rated voltage of 34VAC/VDC
  • Insulating body material is polyphenylene oxide,UL94-V0 rated
  • CuZn, silver plated contact
  • Mating with KLS 40, KLS 44, WKLS 40 jack plugs
  • Temperature range from -20°C to 70°C

Applications

Audio, Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
3Contacts

:
Jack

:
3.5mm

:
PCB Mount

:
Silver Plated Contacts

:
Plastic Body

:
-

Find similar products Choose and modify the attributes above to find similar products.
