B65517D0250J048
Transformer Cores, Gapped, Toroid, P9/5, High Q Inductors, N48, 12.5 mm, 10 mm²

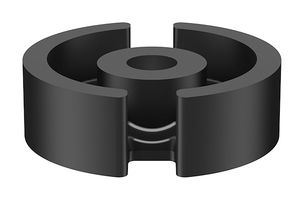

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEPCOS
Manufacturer Part NoB65517D0250J048
Order Code2673412
Product RangeB65517 Series
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerEPCOS
Manufacturer Part NoB65517D0250J048
Order Code2673412
Product RangeB65517 Series
Technical Datasheet
Core TypeToroid
Core SizeP9/5
Core Material GradeN48
For Use WithHigh Q Inductors
Effective Magnetic Path Length12.5mm
Ae Effective Cross Section Area10mm²
Inductance Factor Al250nH
Product RangeB65517 Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Core Type
Toroid
Core Material Grade
N48
Effective Magnetic Path Length
12.5mm
Inductance Factor Al
250nH
SVHC
No SVHC (21-Jan-2025)
Core Size
P9/5
For Use With
High Q Inductors
Ae Effective Cross Section Area
10mm²
Product Range
B65517 Series
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85049011
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
