B59907A0120A062
PTC Thermistor, 1.5 kohm, 400 V, SMD, -40°C to 125°C

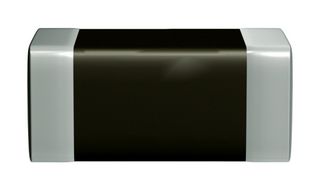

Image is for illustrative purposes only. Please refer to product description.
3,690 In Stock
Need more?
Next Day Delivery
Order before 6pm standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 50+ | £0.519 |
| 250+ | £0.456 |
| 500+ | £0.421 |
| 1000+ | £0.389 |
| 2000+ | £0.354 |
Price for:Each (Supplied on Cut Tape)
Minimum: 100
Multiple: 5
£55.40 (ex VAT)
A £3.50 re-reeling charge will be added for this product
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPCOS
Manufacturer Part NoB59907A0120A062
Order Code4246000RL
Technical Datasheet
Resistance (25°C)1.5kohm
Thermistor MountingSMD
Product Range-
Operating Voltage Max400V
Operating Temperature Min-40°C
ApplicationsOver Current Protection, Short Circuit Protection
Operating Temperature Max125°C
Thermistor TypeChip
Resistance Tolerance (25°C)± 35%
Holding Current Max12mA
SVHCNo SVHC (21-Jan-2025)
Trip Current22mA
Switching Temperature Min-
Switching Temperature Max-
PTC Thermistor Diameter-
QualificationAEC-Q200
Automotive Qualification StandardAEC-Q200
Technical Specifications
Resistance (25°C)
1.5kohm
Product Range
-
Operating Temperature Min
-40°C
Operating Temperature Max
125°C
Resistance Tolerance (25°C)
± 35%
SVHC
No SVHC (21-Jan-2025)
Switching Temperature Min
-
PTC Thermistor Diameter
-
Automotive Qualification Standard
AEC-Q200
Thermistor Mounting
SMD
Operating Voltage Max
400V
Applications
Over Current Protection, Short Circuit Protection
Thermistor Type
Chip
Holding Current Max
12mA
Trip Current
22mA
Switching Temperature Max
-
Qualification
AEC-Q200
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85334090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0001
