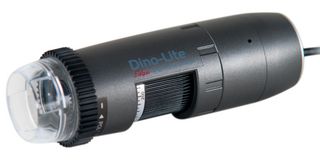

AM4815ZTL

AM4815ZTL Dino-Lite long working distance microscope provides superior image quality and a high level of flexibility due to the adaptable cap design. The built-in adjustable polarizer reduces glare and reflection on shiny objects. With the Extended Dynamic Range (EDR) feature, the details of darker or brighter areas within the object can be revealed by stacking images at different exposure levels. The Extended Depth of Field (EDOF) feature automatically stacks images at different focus level to improve the depth of field on rough or uneven surfaces. Different caps are supplied with the microscope making the Dino-Lite Edge the perfect choice for any professional application. Together with the long working distance of up to 23 centimetres the AM4815ZTL is the ideal choice in situations, where real time images are vital, such as working on PCB's or other miniature objects.

• Switchable 8 white LEDs
• Optics: 10-140x magnification, long working distance, glass with anti-reflection coating lens
• 1.3Megapixel (1280x1024) CMOS sensor
• USB 2.0 interface
• Polarization anti-reflection
• Calibration, measurement, capturing & annotating images and record video
• Composite/ plastic housing
• Magnification lock
• 1.8m cable length

Contents

Microscope, Carry pouch, Software CD, Calibration target, User manual, N3C-O- open cap, N3C-C- closed cap, N3C-D- diffuser cap, N3C-E- extension cap, N3C-L- long cap, N3C-S- side light cap.
