Product Information
ManufacturerCOMUS
Manufacturer Part NoRI-60SMD1015
Order Code2787223RL
Product RangeRI-60SMD
Technical Datasheet
Product RangeRI-60SMD
Contact ConfigurationSPST-NO
Switch MountingSurface Mount
Contact Current Max500mA
Switching Voltage Max200VDC
Switching Power Max10W
Contact Resistance Max125µohm
Operate AT Min10AT
Operate AT Max15AT
SVHCNo SVHC (23-Jan-2024)
Product Overview

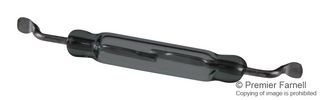

The RI-60SMD1015 is a SPST-NO SMD Ultra-miniature Dry Reed Switch hermetically sealed in a gas-filled glass envelope. It has normally open contacts and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in relays, sensors, pulse counters or similar devices.
- Ideal for ATE switching
- Contact layers gold, sputtered ruthenium
- Superior glass-to-metal seal and blade alignment
- Excellent life expectancy and reliability
- -55 to 125°C Operating temperature range
Applications
Sensing & Instrumentation, Industrial
Technical Specifications
Product Range
RI-60SMD
Switch Mounting
Surface Mount
Switching Voltage Max
200VDC
Contact Resistance Max
125µohm
Operate AT Max
15AT
Contact Configuration
SPST-NO
Contact Current Max
500mA
Switching Power Max
10W
Operate AT Min
10AT
SVHC
No SVHC (23-Jan-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Netherlands
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Netherlands
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000158
