AES-K24-IO-DK-G

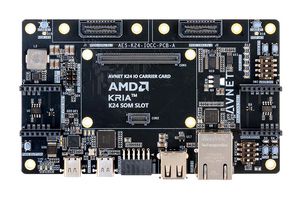

AES-K24-IO-DK-G K24 development kit is a combination of an AMD KRIA K24 system on module (reduced feature) and an Avnet Embedded K24 IO carrier card with an out-of-box reference design, downloadable hardware user guide, board definition file (BDF), and board-support-package (BSP) for engineers to design with the K24 SOM. The K24 IO Carrier Card leverages the commercial or industrial grade AMD KRIA K24 SOM based on a custom Zynq UltraScale+ MPSoC. The K24 SOM provides an embedded processing system (PS) with tightly integrated programmable logic and a rich set of configurable I/O capabilities. The SOM hardware features include 2GB 32-bit wide, 1066 Mb/s LPDDR4 memory, 512Mb QSPI, 32GB eMMC (not included with kit), 64Kb EEPROM non-volatile memory. Target applications include machine vision, healthcare/medical devices, Ethernet gateways, EV charging, robotics, factory automation, industrial IoT and smart sensors, aerial systems, smart home appliance.

• Kria K24 SOM slot, HSIO expansion TXR2 x2
• MikroE Click expansion interface x2
• PMOD Type 1A PL GPIO interface
• 10/100/1000 Ethernet with MAC ID
• USB 2.0 Type-A, microSD card interface
• USB-Type-C JTAG-UART interface
• User slides switches and push button I/O
• User RGB and monochrome LEDs
• USB-Type-C power input (15V)
• VBATT rechargeable battery solution

Contents

KRIA K24 (non-production), K24 carrier card, Quick start card.
