MAX22501EEVKIT#

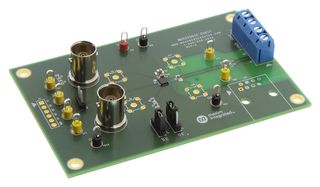

The MAX22501EEVKIT# is an evaluation kit (EV kit) for MAX22501E. It is a fully assembled and tested PCB that demonstrates the functionality of the MAX22501E half-duplex, high speed RS485/RS422 transceiver. The EV kit can be used for standalone evaluation or can be connected (using the on-board terminal block) to an RS485/RS422 network for easy in-system evaluation. Typical applications include backplane busses, encoder interfaces, field bus networks, industrial control systems and motion control.

• Operates from a single 3V to 5V supply and includes selectable on-board termination
