MS3106A-22-14S -

Circular Connector, MIL-DTL-5015 Series, Straight Plug, 19 Contacts, Solder Socket, Threaded, 22-14

MS3106A-22-14S - Circular Connector, MIL-DTL-5015 Series, Straight Plug, 19 Contacts, Solder Socket, Threaded, 22-14
MS3106A-22-14S - Circular Connector, MIL-DTL-5015 Series, Straight Plug, 19 Contacts, Solder Socket, Threaded, 22-14

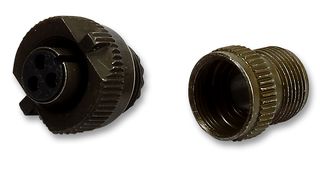

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MS3106A-22-14S
Order Code:
617155
Product Range
MIL-DTL-5015 Series
Technical Datasheet:
MS3106A-22-14S   Datasheet
See all Technical Docs

Product Overview

The MS3106A22-14S is a 19-contact Circular Connector with silver-plated copper alloy socket contacts, solid shell and 22-14 insert arrangement. Shell components are fabricated from high grade aluminum alloy. Electrically conductive cadmium plate finish with an olive drab chromate after-treat offers corrosion resistance. Resilient neoprene inserts provides high dielectric strength, high arc resistance and resistance to vibration. This connector represents well-proven electrical capability at an acceptable cost for most equipment where durability is important. MIL-C-5015 features threaded coupling, single key and keyway polarization representing maximum simplicity in design. Suitable for ordnance and shipboard installation where mechanical forces and physical parameters are not subject to extreme or rapid environmental changes.
  • Medium to heavy weight cylindrical
  • Durable and field-proven design
  • 3000VAC RMS at Sea level operating voltage
  • Split end bell service class

Applications

Aerospace, Defence, Military, Communications & Networking, Computers & Computer Peripherals

Product Information

:
MIL-DTL-5015 Series
:
Straight Plug
:
19Contacts
:
Solder Socket
:
Threaded
:
22-14
:
Aluminium Alloy Body
:
Olive Drab Chromate over Cadmium
:
Brass, Copper Alloy
:
Silver
:
N
:
General Duty
:
MIL-DTL-5015 Series
