NXP XTRINSIC-SENSORS-EVK
Evaluation Kit for NXP Xtrinsic Sensors using FRDM-KL25Z Platform
- Manufacturer:
- NXP NXP
- Manufacturer Part No:
- XTRINSIC-SENSORS-EVK
- Order Code:
- 2308734
- Technical Datasheet:
- XTRINSIC-SENSORS-EVK Datasheet
- ECAD / MCAD
-
Alternatives for XTRINSIC-SENSORS-EVK
Product Overview

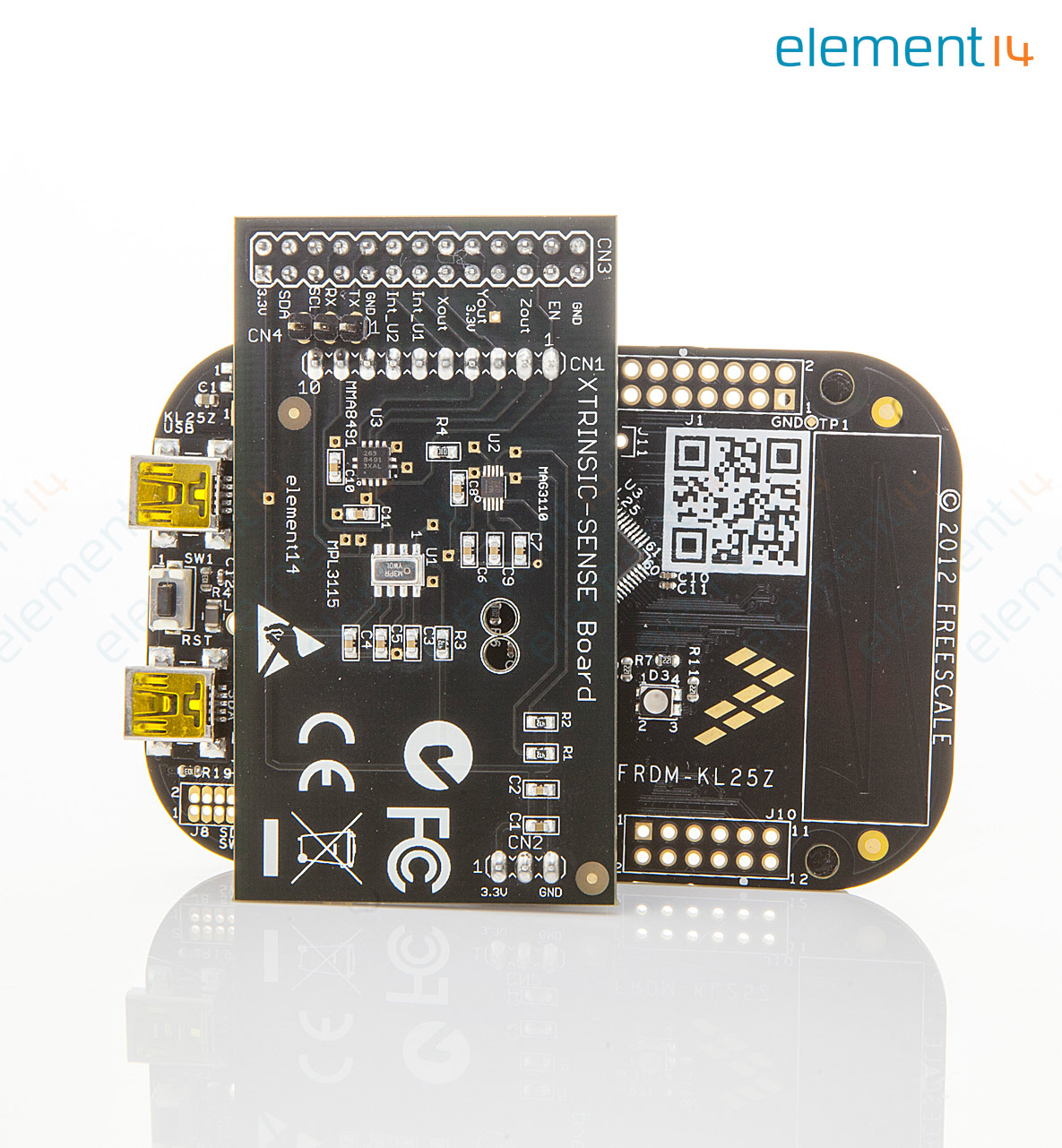

The XTRINSIC-SENSORS-EVK is an evaluation kit that comes with a sensor board together with the FRDM-KL25Z platform. The software drivers and code enable engineers to easily evaluate and demonstrate the performance of the sensors in a variety of applications. The sensor board comes equipped with three of new generation XTRINSIC MEMS sensors. The MPL3115 is designed for accurate measurement of altitude and pressure, the MAG3110 for detection of magnetic fields, and the MMA8491 for measurement of physical positions. The FRDM-KL25Z features a KL25Z128VLK a KL2 family device boasting a max operating frequency of 48MHz, 128KB of flash, a full speed USB controller and loads of analog and digital peripherals. The FRDM-KL25Z has an easy access to MCU I/O via Arduino R3 compatible I/O connectors. The freedom board also features a programmable OpenSDA debug interface.
- MPL3115A2 is a highly precise altitude and pressure sensor
- Pressure range from 20kPa to 110kPa
- Less than 1foot/0.3m resolution
- MAG3110 is a low power digital 3D magnetic sensor
- Measuring local magnetic fields up to 10Gauss
- MMA8491Q is a 3 axis accelerometer
- Ultra low power tamper detection and tilt sensor
- FRDM-KL25Z is a freedom development platform
- Host platform for the Xtrinsic sensors based on the Kinetis KL25z MCU
Applications
Sensing & Instrumentation, Communications & Networking, Consumer Electronics, Portable Devices, Medical, Wireless
Contents
Xtrinsic Sensors Board, FRDM-KL25Z board, Quick start guide.
Footnotes
If possible, use antistatic devices, such as wrist straps and floor mats while using the board.
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Sensing - Sampling Kit / Related Components
- :
- NXP
- :
- KL25Z, MAG3110, MMA8491, MPL3115
- :
- -
- :
- Xtrinsic Sensor Board, Freedom FRDM-KL25Z Evaluation Board
- :
- -
