XBP24-AWI-001

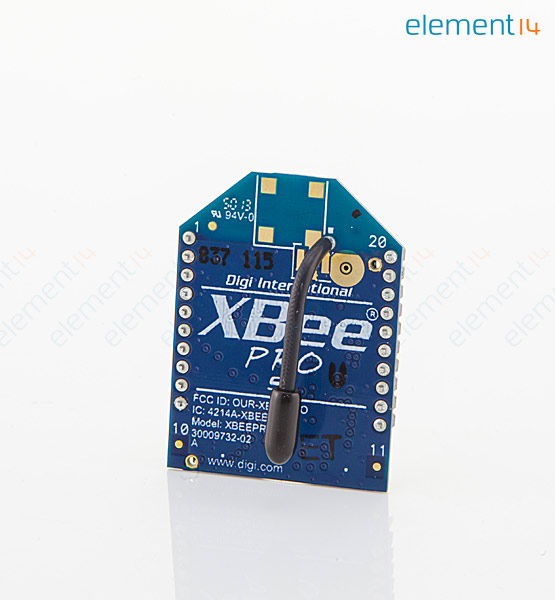

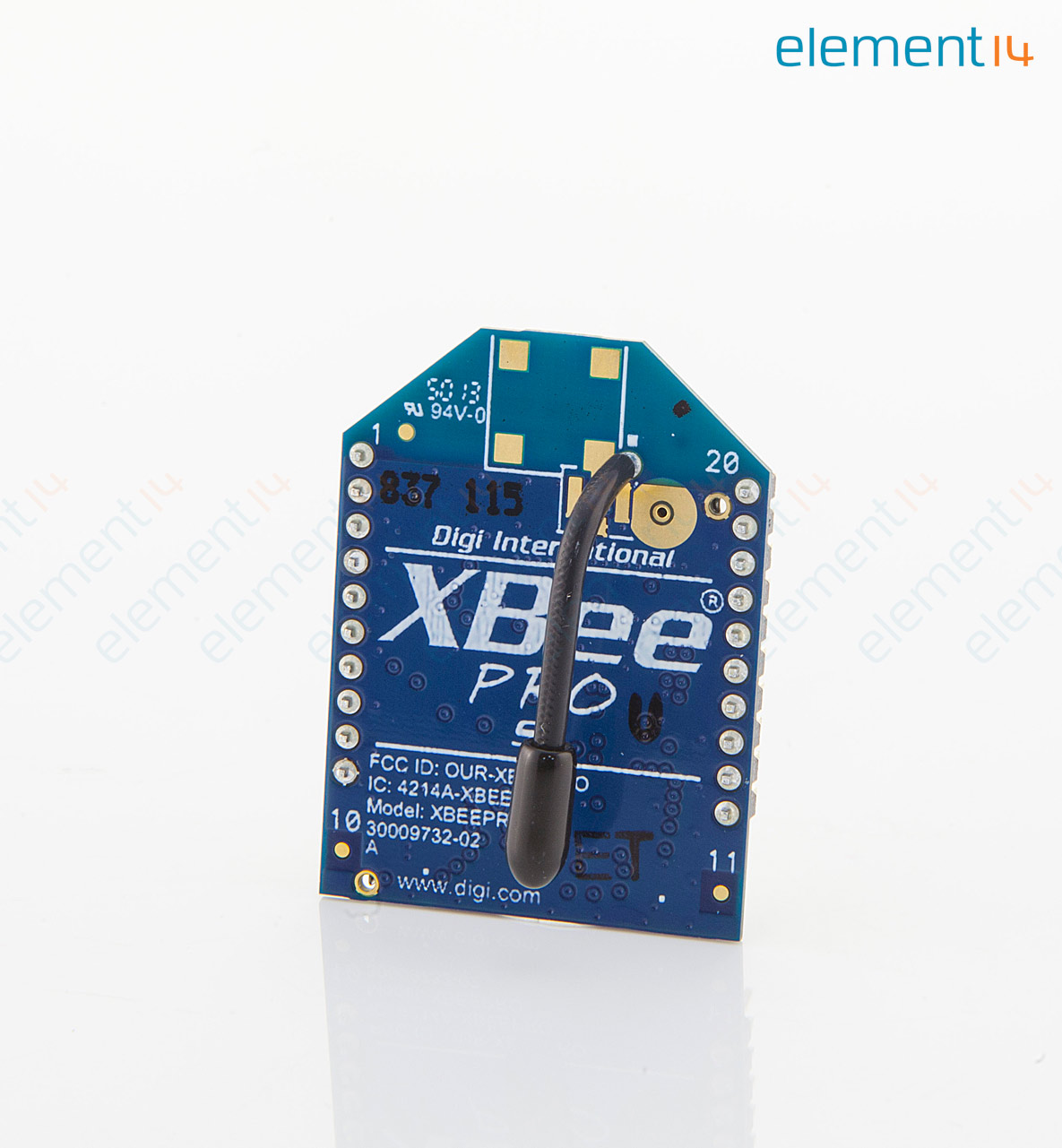

Module, Xbee Pro, 802.15.4, Wire Antenna
- Manufacturer:
- DIGI INTERNATIONAL DIGI INTERNATIONAL
- Manufacturer Part No:
- XBP24-AWI-001
- Order Code:
- 1337916
- Technical Datasheet:
- XBP24-AWI-001 Datasheet
Product Overview
XBP24-AWI-001 is a XBee-PRO 802.15.4 OEM RF modules with attached wire antenna which are embedded solutions providing wireless end-point connectivity to devices. These modules use the IEEE 802.15.4 networking protocol for fast point-to-multipoint or peer-to-peer networking. They are designed for high-throughput applications requiring low latency and predictable communication timing. These RF Modules were engineered to meet IEEE 802.15.4 standards and support the unique needs of low-cost, low-power wireless sensor networks. The modules require minimal power and provide reliable delivery of data between devices. The modules operate within the ISM 2.4 GHz frequency band and are pin-to-pin compatible with each other. XBee modules are ideal for low-power, low-cost applications. XBee-PRO modules are power-amplified versions of XBee modules for extended-range applications. These modules are easy-to-use, share a common footprint, and are fully interoperable with other XBee products.
- Power output 10 mW (+10 dBm) International version
- Indoor/Urban range: Up to 300 ft (90 m)
- Outdoor/RF line-of-sight range: Up to 1 mile (1.6 km) RF LOS
- RF data rate: 250 Kbps
- Interface data rate: Up to 115.2 Kbps
- Frequency band: 2.4000 - 2.4835 GHz
- Receiver sensitivity: -100 dBm (all variants)
- Networking topology Point-to-point, point-to-multipoint, & peer-to-peer
- Filtration options: PAN ID, Channel, and 64-bit addresses
- Supports Integrated whip antenna
Applications
RF Communications, Wireless, Security, Communications & Networking
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- RF Communications, Wireless Connectivity-ZigBee
- :
- XBee
- :
- IEEE 802.15.4
- :
- 250Kbps
- :
- -
- :
- 2.8V
- :
- 3.4V
- :
- -
