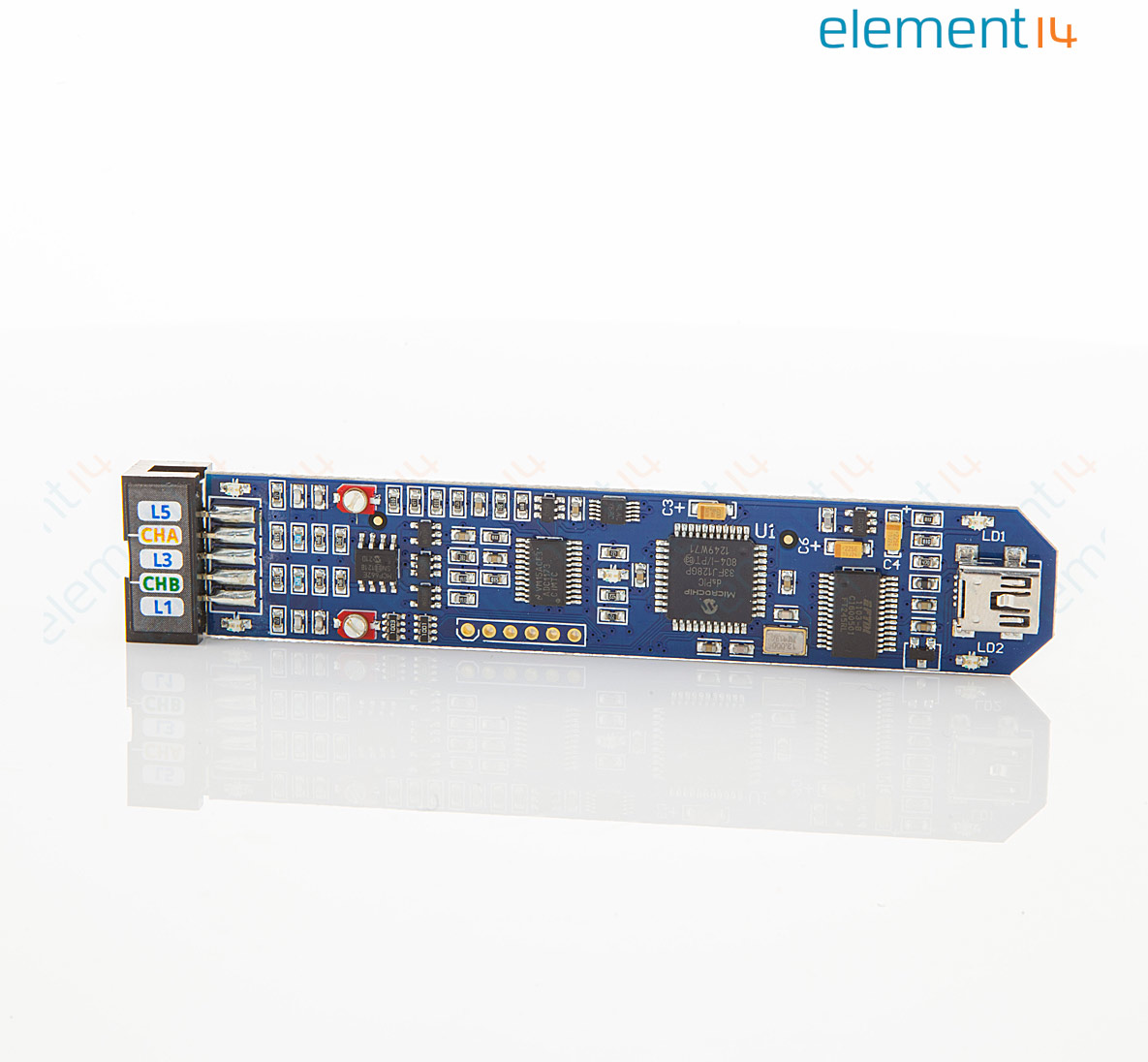

BS05U

USB Oscilloscope / Logic Analyzer, BitScope Micro, 2 Analogue / 6 Digital Channels, 20MHz

BITSCOPE BS05U
BITSCOPE BS05U
BITSCOPE BS05U
BITSCOPE BS05U
BITSCOPE BS05U
BITSCOPE BS05U
Video
360°
×
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BITSCOPE BITSCOPE
Manufacturer Part No:
BS05U
Order Code:
2432906
Product Range
BitScope Micro
Also Known As:
GTIN UPC EAN: 5060275000019
Technical Datasheet:
BS05U   Datasheet
See all Technical Docs

Product Range Selector (BitScope Micro)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
BitScope Micro

:
2+6 Channel

:
20MHz

:
40MSPS

:
-

:
-

:
20 MHz bandwidth x 8 channel (2 analog + 6 digital) smallest mixed signal scope and waveform generator, 10 mixed signal test probes, USB cable and software.

:
-

:
USB

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (6)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

BitScope "Micro" Model 5 mixed signal scope includes a powerful logic protocol analyzer, waveform & pattern generator, spectrum analyzer and data recorder in one tiny lightweight and waterproof USB powered package. It is fully user programmable, captures digital and analogue signals simultaneously at high speed to 12k buffer and can stream continuously direct to disk. BitScope Micro is compatible with Raspberry Pi, Windows, Mac OS X and Linux on x86 and ARM. It's an ideal test and measurement companion.
  • Dual channel digital storage oscilloscope
  • 12 bit analogue sample resolution and high speed real-time waveform display
  • Capture 8 logic/timing signals along with cross-triggers for multi-channel mixed signal measurements
  • Capture SPI, CAN, I2C, UART & logic timing concurrently, solving complex system control problems
  • Display analogue waveforms and their spectra simultaneously in real-time
  • Generate an arbitrary waveform, capture analogue & digital signals concurently
  • Enables creation of programmable logic and/or protocol patterns
  • Record to disk anything BitScope can capture, allowing off-line replay & waveform analysis
  • User programmable, C/C++, Python, VM API

Contents

20 MHz bandwidth x 8 channel (2 analog + 6 digital) smallest mixed signal scope and waveform generator, 10 mixed signal test probes, USB cable and software.

Also Known As

GTIN UPC EAN: 5060275000019
Best Seller

Available to manufacturer lead time of 119 days

£36.41 ( ex VAT  ) £43.692 ( inc VAT )

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price (ex VAT) (inc VAT) Your Price (ex VAT)


1+ £36.41 £43.692
