BBC MICRO:BIT MB158-US
Single Board Computer, micro:bit go, Pocket Sized, Fun and Easy to Use
- Manufacturer:
- BBC MICRO:BIT BBC MICRO:BIT
- Manufacturer Part No:
- MB158-US
- Order Code:
- 2728765
- Product Range
- micro:bit
- Also Known As:
- GTIN UPC EAN: 640522711055
- Technical Datasheet:
- MB158-US Datasheet
- ECAD / MCAD
-
Product Range Selector (micro:bit)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Nordic Semiconductor
- :
- ARM, Cortex
- :
- ARM
- :
- ARM
- :
- ARM Cortex M0
- :

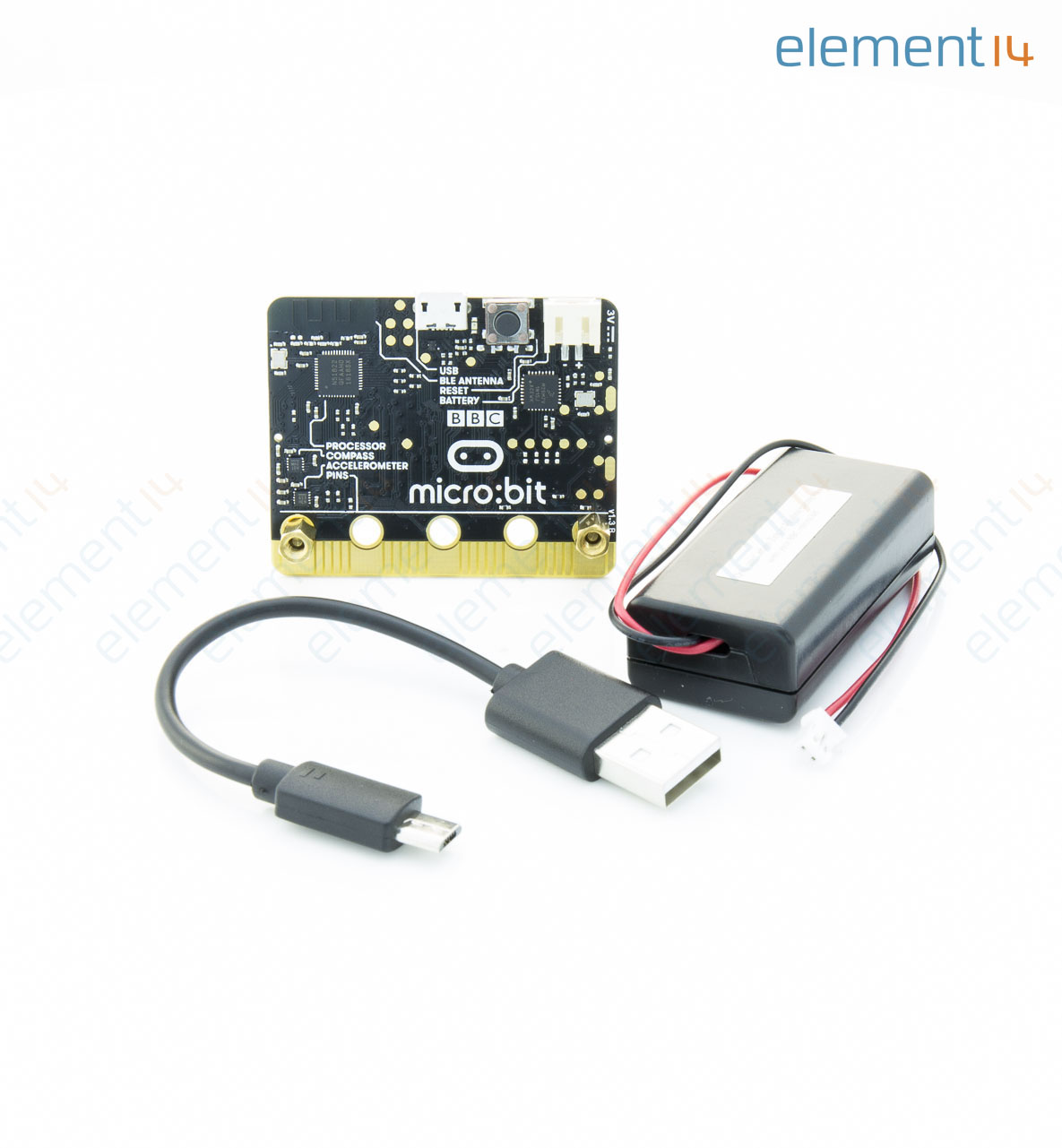

- BBC micro:bit Board, USB cable, Battery holder, 2x AAA batteries, Quick start guide
- :
- micro:bit
Technical Documents (2)
Product Overview
Get creative, get connected & get coding with the micro:bit go. A complete set containing all the parts and inspirational ideas to get started with the micro:bit. Each micro:bit go contains 1x micro:bit, USB cable, battery holder & 2x AAA batteries along with a Quick Start Guide featuring 4 fun ideas all in a retail ready pack. The micro:bit go is the quickest and easiest way for children to get going with the micro:bit. The micro:bit is a pocket-sized computer that you can code, customise and control to bring your digital ideas, games and apps to life. Measuring 4cm by 5cm, and designed to be fun and easy to use, users can create anything from games and animations to scrolling stories at school, at home and on the go - all you need is imagination and creativity. The micro:bit is completely programmable. That means each of its LEDs can be individually programmed as can its buttons, inputs and outputs, accelerometer, magnetometer and Bluetooth Smart Technology. The micro:bit has a website full of coding languages, lesson plans, tutorials, and fun ideas to help you get creative (www.microbit.co.uk).
- Microprocessor: 32-bit ARM® Cortex™ M0 CPU
- A 5x5 LED matrix with 25 red LEDs to light up and can display animiated patterns, scrolling text and alphanumeric characters
- Two programmable buttons. Use them as a games controller, or control music on a smart phone
- On-board motion detector or 3-AXIS digital accelerometer that can detect movement e.g. shake, tilt or free-fall
- A built-in compass, 3D magnetometer to sense which direction you're facing and your movement in degrees and detect the presence of certain metals and magnets
- Bluetooth® Smart Technology. Connect the micro:bit to other micro:bits, devices, phones, tablets, cameras and other everday objects
- 20 pin edge connector: This allows the micro:bit to be connected to other devices such as Raspberry Pi, Arduino, Galileo and Kano through a standard connector
- Micro-USB controller: This is controlled by a separate processor and presents the micro:bit to a computer as a memory stick
- Five Ring Input and Output (I/O) including power (PWR), ground (GRD) and 3 x I/O.
- System LED x 1 (yellow)
- System push button switch x 1
Applications
Embedded Design & Development
Contents
1x micro:bit, USB cable, Battery holder, 2x AAA batteries, Quick start guide.
Footnotes
Note: micro:bit board revision 1.5, for more information visit https://tech.microbit.org/hardware/
Also Known As
GTIN UPC EAN: 640522711055
No Longer Manufactured
Product Range Selector (micro:bit)
See all from this product range- Price for:
- Each
Multiple: 30 Minimum: 30
- 30+
| Quantity | Price (ex VAT) (inc VAT) | Your Price (ex VAT) |
|---|---|---|
| 30+ | £13.31 £15.972 | |
