NXP - OM13053 - EVAL, LPCXPRESSO, LPC812, CORTEX M0+

NXPOM13053

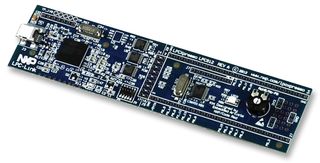

Image is for illustrative purposes only.
Please refer to product description
Manufacturer:
NXP
Order Code:
2254492
Manufacturer Part No:
OM13053

Technical Data Sheet (136.49KB) EN
Technical Data Sheet (136.49KB) EN

Product Information
  • EVAL, LPCXPRESSO, LPC812, CORTEX M0+
  • Silicon Manufacturer: NXP
  • Core Architecture: ARM
  • Core Sub-Architecture: Cortex-M0
  • Silicon Core Number: LPC812
  • Silicon Family Name: LPC800
  • No. of Bits: 32bit
  • Kit Contents: Evaluation Board
  • Features: 12 MHz Crystal for CPU, 16kB of Flash, 4kB of Data Memory
  • SVHC: No SVHC (16-Jun-2014)
LPCXpresso Board with LPC812 Microcontroller
OM13053 is a LPC812-LPCXpresso board with LPC812 Cortex-M0+ microcontroller designed to make it as easy as possible to get started with user project. Combined with the full featured, easy to use Eclipse based LPCXpresso IDE, the entire product design cycle for the LPC800 is supported. This Eclipse based software development environment, available for Window, Linux and Mac OS X, includes all the tools necessary to develop high quality software solutions in less time and with a lower budget. Along with the latest version of the industry standard Eclipse GNU toolchain, the IDE includes a proprietary, optimized C library, and can be used to build an executable of any size, with full code optimization.
  • LPC812 Cortex-M0+ microcontroller in TSSOP20 package
  • 16KB of flash, 4KB of data memory
  • 12.000MHz crystal for CPU
  • 3.15V to 3.3V external powering, or from USB via on board LPC-LINK JTAG probe
  • UART header compatible with C232HD-DDHSP-0 cable (or similar) for In System Programming
  • All LPC812 pins available on expansion connector
  • Embedded JTAG (LPC-LINK) functionality via LPCXpresso IDE
  • LPC-LINK can be connected to external target processor after modifications to the LPCXpresso board
  • Consumer Electronics
  • Lighting
  • Motor Drive & Control
  • Security
Find Similar Products grouped by common attributes

Availability

6 in stock for next working day delivery (UK stock)
17 in stock for next working day delivery (EU stock)
see cut-off times
6 UK Stock: Order before 20:00 (for re-reeled items 16:30) Mon-Fri (excluding National Holidays)
17 European Stock: Order before 20:00 (for re-reeled items 16:30) Mon-Fri (excluding National Holidays)

Price For: 1 Each

Minimum Order Quantity: 1

Order Multiple: 1

Unit Price: £12.24

  1. Qty

Price

Qty List Price
1+  £12.24
