LITTELFUSE  0218010.MXP  Fuse, Cartridge, 218 Series, 10 A, 250 V, 5mm x 20mm, 0.2" x 0.79", 100 A

LITTELFUSE 0218010.MXP
Manufacturer Part No:
0218010.MXP
Order Code:
1271634
Product Range
218 Series
Technical Datasheet:
See all Technical Docs

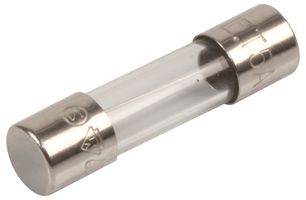

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The 0218010.MXP is a 218-Series 10A 250VAC slow blow anti-surge Cartridge Fuse with glass body, nickel-plated brass cap and tin-plated copper leads, 5 x 20mm, time-lag characteristic, this is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits, it is designed to International (IEC ) standards for use globally. Meets the IEC 60127-2 standard.
  • 100mV Maximum Voltage drop
  • 0.0045R Cold resistance
  • 4W Maximum power dissipation
  • -55 to 125°C Operating temperature range

Product Information

Product Range:
218 Series
Fuse Current:
10A
Voltage Rating V AC:
250V
Fuse Size Metric:
5mm x 20mm
Fuse Size Imperial:
0.2" x 0.79"
Blow Characteristic:
Slow Blow
Breaking Capacity Current AC:
100A
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Safety

Legislation and Environmental

Country of Origin:
Switzerland

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85361010
Weight (kg):
.000941
