STMICROELECTRONICS - STM8S-DISCOVERY - STM8S, W / ST-LINK, DISCOVERY KIT

STMICROELECTRONICSSTM8S-DISCOVERY

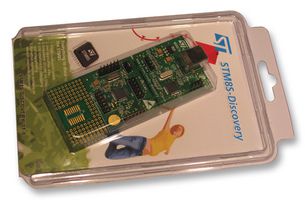

Image is for illustrative purposes only.
Please refer to product description
Manufacturer:
STMICROELECTRONICS
Order Code:
1775251
Manufacturer Part No:
STM8S-DISCOVERY

Technical Data Sheet (92.92KB) EN
Technical Data Sheet (92.92KB) EN

Product Information
  • STM8S, W / ST-LINK, DISCOVERY KIT
  • Silicon Manufacturer: STMicroelectronics
  • Core Architecture: STM8
  • Core Sub-Architecture: STM8
  • Silicon Core Number: STM8
  • Silicon Family Name: STM8S
  • No. of Bits: 8bit
  • Kit Contents: Board, USB Cable
  • Features: Touch Sensing Button, Embedded ST-Link
  • SVHC: No SVHC (16-Dec-2013)
  • Development Tool Type: Evaluation Board
  • MCU Supported Families: STM8S
  • Supported Devices: STM8S105C6T6
  • Type: Hardware - Eval/Demo Board
Discovery Kit for STM8S Series Microcontroller
The STM8S-DISCOVERY helps user to discover the STM8S features and to develop and share their own application. It is based on an STM8S105 and includes an embedded debugger, ST-LINK and a touch sensing button. Numerous applications are available from the STM8S-Discovery web page. The STM8S-DISCOVERY is designed around the STM8S105C6T6 microcontroller in an LQFP48 package. It has two distinct sections that may be separated, the STM8S105C6T6 module and the ST-LINK module.
  • STM8S105C6T6 microcontroller, 32KB Flash, 2KB RAM, 1KB EEPROM
  • Powered by USB cable between PC and STM8S-DISCOVERY
  • Selectable power of 5 V or 3.3 V
  • Touch sensing button
  • Features User LED
  • Extension header for all I/Os
  • Wrapping area for users own application
  • Embedded ST Link
  • USB interface for programming and debugging
  • SWIM debug support
  • Communications & Networking
  • Hobby & Hardware Hacking
Find Similar Products grouped by common attributes View this product in our online or paper catalogue

Catalogue Page:

82 / UK1

Availability

122 in stock for next working day delivery (UK stock)
122 in stock for next working day delivery (EU stock)
see cut-off times
122 UK Stock: Order before 20:00 (for re-reeled items 16:30) Mon-Fri (excluding National Holidays)
122 European Stock: Order before 20:00 (for re-reeled items 16:30) Mon-Fri (excluding National Holidays)

Price For: 1 Each

Minimum Order Quantity: 1

Order Multiple: 1

Unit Price: £5.31

  1. Qty

Price

Qty List Price
1+  £5.31
